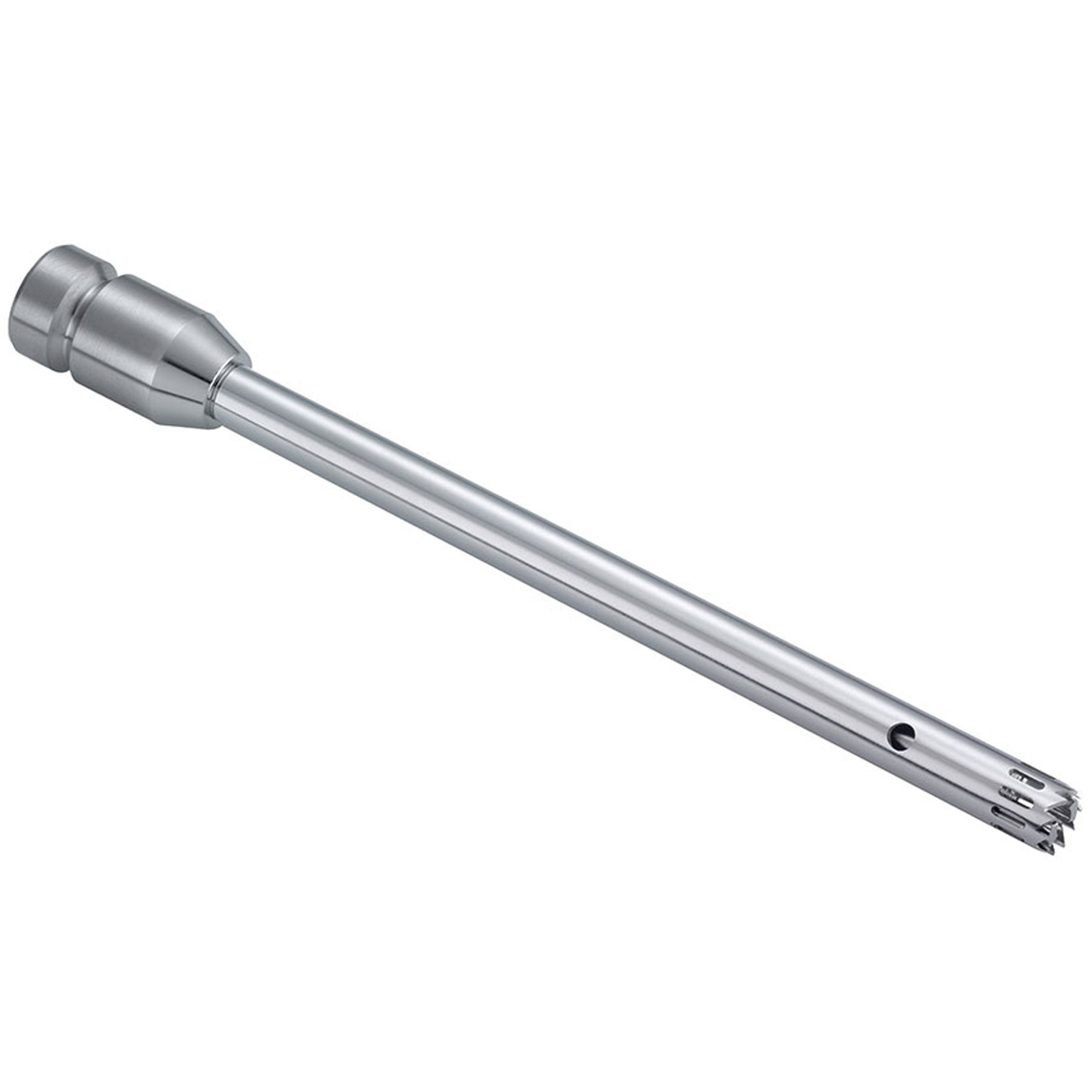

Dispersing element S 10 N - 8 G - ST

Item number: IKA_Z0238

EAN: 4064343371032

Category: IKA

Manufacturer: IKA

1.574,00 €

Excluding 19% VAT. , plus shipping (Standard)

(including 19% VAT. 1.873,06 €)


The variety of media to be processed also requires a variety of rotor-stator configurations and seals. In many cases it is neccessary to use subsequently two dispersing elements, for pre-crushing and fine crushing. The plug-in connectors facilitate the exchange of the dispersing elements.


Dispersing element S 10 N - 8 G - ST

for IKA Disperser T 10 basic


Shipping weight: 1,20 Kg
Volume range min. (H2O) [l] 0.001
Volume range max. (H2O) [l] 0.05
Stator diameter [mm] 8
Rotor diameter [mm] 6.1
Gap between rotor and stator [mm] 0.25
allowable Speed max. [rpm] 30000
Circumferential speed max. [m/s] 9.6
Immersion depth min. [mm] 22
Immersion depth max. [mm] 95
Shaft length [mm] 115
Material in contact with medium PTFE, AISI 316L
pH min.  2
pH max. 13
Suitable for solvents yes
Suitable for abrasive substances   yes
Working temperature max. [°C] 180
Sterilization methods all methods
Ultimate fineness, suspensions min. [µm] 5

Ultimate fineness, suspensions max. [µm]

25
Ultimate fineness, emulsions min. [µm]  1

Ultimate fineness, emulsions max. [µm]

10
