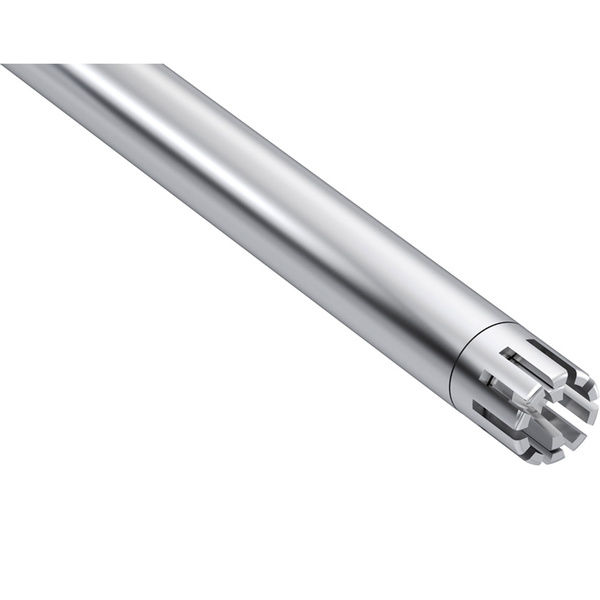

IKA Dispersing tool S 25 KD - 18 G

Item number: IKA_Z0603

EAN: 4064343018784

Category: IKA

Manufacturer: IKA

1.685,00 €

Excluding 19% VAT. , plus shipping (Standard)

(including 19% VAT. 2.005,15 €)


IKA Dispersing tool S 25 KD - 18 G

Dispersing tool for the dispersers T 25 digital, T 25 easy clean digital/control

Type of sealing and bearing: Ball-bearing with PTFE sealing and FFKM O-ring
Product-touching material: AISL 316L, PTFE, FFKM
Suitable for solvents: Yes
Sterilizable: all methods (except ball-bearing)
Suitable for vacuum: Yes Max. working temperature (°C): 150
Shaft length (mm): 194
Diameter stator/rotor (mm): 18/12.7
Gap between (mm): 0.3
Recommend emersion depth (mm): 40 - 185
Recommend working range (ml): 10 - 1,500

Shipping weight: 1,00 Kg
Product weight: 0,40 Kg
IKA Dispersing tool S 25 KD - 18 G
Volume range (H2O) 0.01 - 1.5 l
Stator diameter 18 mm
Rotor diameter 12.7 mm
Gap between rotor and stator 0.3 mm
allowable Speed max. 25000 rpm
Circumferential speed max. 16.6 m/s
Immersion depth 40 - 185 mm
Shaft length 194 mm
Material in contact with medium AISI 316L, PTFE, ceramic
pH range 2 -13
Working temperature max. 150 °C
Sterilization methods wet chemical
Vacuum 50 mbar
Ultimate fineness, suspensions 10 - 50 µm
Ultimate fineness, emulsions 1 - 10 µm
