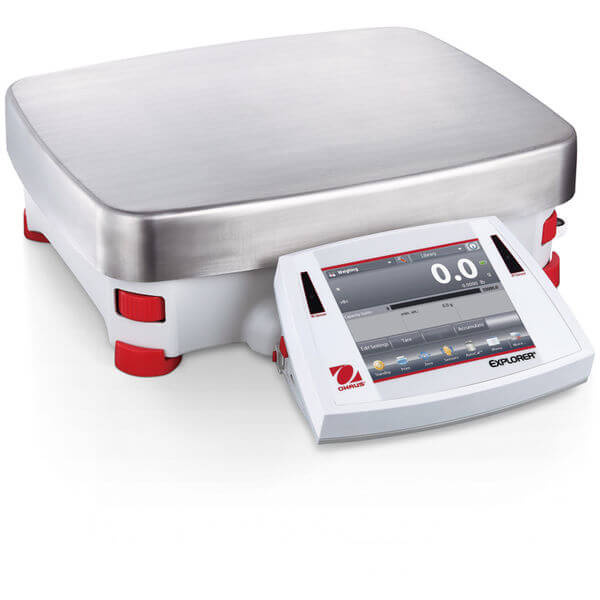

OHAUS precision balance Explorer Precision High Capacity
The OHAUS Explorer Precision High Capacity precision balance is a high-quality solution for demanding weighing applications in laboratory and industrial environments. Thanks to its large capacity and precise, stable design, it clearly stands out from comparable models. Users benefit from intuitive functions such as the easy-to-read colour touchscreen and automatic internal adjustment. Whether in quality control, formulation or research and development, this scale offers reliable performance with maximum efficiency.
Functions and features
This scale is specially designed to weigh even large loads quickly and accurately. At the same time, the robust IP54 metal housing ensures a long service life and protects the integrated load cell. The detachable display unit makes it easy to work with, even when the scale is set up in confined spaces. Two non-contact IR sensors, which are freely programmable, ensure simple operation. Thanks to AutoCal, the automatic internal calibration, the measuring accuracy remains constant at all times.
Important key technical data:
- Maximum weighing capacity of up to 35,000 g
- Readability up to 0.1 g
- AutoCal function for automatic calibration
- 5.7" (145 mm) colour VGA touchscreen
- Integrated RS232 and USB interfaces
- IP54-protected housing for harsh environmental conditions
- Optional rechargeable battery for up to 10 hours of wireless operation
Other special features include a 2D shock protection that protects the device from damage in hectic working environments and a large weighing pan (377 x 311 mm) made of stainless steel for hygienic and easy-to-clean surfaces. The modular design supports various weighing applications - from piece counting and recipe weighing to complex statistical analyses.
The colour display makes operation easier and offers freely adjustable brightness as well as extensive menu functions. This allows users to quickly switch between weighing modes, define tolerance values for checkweighing or save recipes. In addition, the die-cast upper part of the housing guarantees stability and ensures that consistently high measuring precision is achieved even under maximum load.
Certifications and standards
The high-capacity models are available in non-verifiable versions and in M versions with EU approval. This means they cover a wide range of requirements, especially when an officially verified balance is needed for commercial or pharmaceutical applications. The internal documentation function with GLP/GMP-compliant data output also supports compliance with current regulations and simplifies the audit process.
Application examples
- Laboratory analyses: precise weighing of chemicals, powders or solid samples for quality assurance and research
- Food industry: recipe development, checkweighing and large production batches
- Chemical industry: processing and filling substances such as powders, granulates or liquids
- Pharmaceutical production: batch testing, weighing for mixing processes and statistical quality control
FAQs
How does the AutoCal automatic calibration work?
The AutoCal function automatically calibrates the scale at regular intervals or when the temperature or location changes. This ensures that the measurement results remain consistently correct.
Can I use the scale in high humidity conditions?
Yes, the IP54 protection class ensures adequate protection against dust and splash water, so that reliable weighing results can also be achieved in humid environments.
Is battery operation possible?
With the optional rechargeable battery, the device can be operated independently of the mains for up to 10 hours. This allows you to work flexibly without a direct power supply.
How fast is the response time of the scale?
The advanced design and integrated load cell display stable results in around one second. This speeds up work processes and enables effective piece count control or recipe management.
Conclusion
This high-performance scale offers professional weighing functions in a robust and convenient design. With its precise load cell made of solid metal, intelligent touchscreen and versatile interfaces, it proves its worth both in the laboratory and in industrial production environments. The automatic calibration, large weighing pan and impact-resistant housing round off the overall concept and make it a reliable partner for high-capacity weighing tasks.
|
Readability (d):
|
0.1 g1 g
|
|
Scale type:
|
precision balanceParcel scalesBench scale
|
|
Weighing surface W x D:
|
377 x 311 mm
|
|
Weighing range max.:
|
12 kg24 kg35 kg
|
|
Linearity:
|
± 0.2 g
|
|
Reproducibility:
|
0.1 g
|
