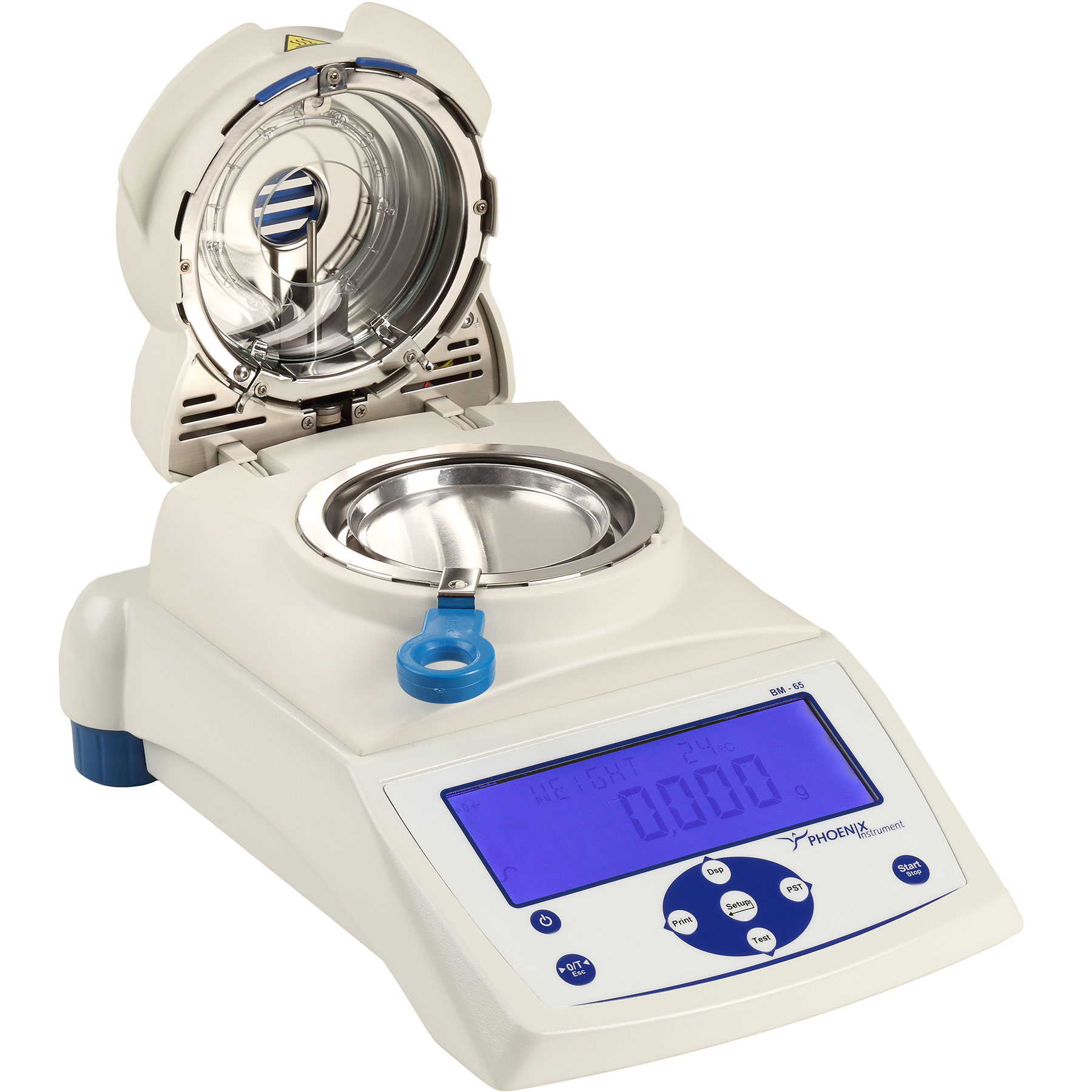

PHOENIX Instrument Moisture Analyser BM-65
The PHOENIX Instrument Moisture Analyser BM-65 is a high-precision, professional analyser for determining the moisture content in a wide variety of materials. Developed for laboratories, the food, agricultural and wood industries, as well as chemical and pharmaceutical production facilities, this device combines state-of-the-art technology with intuitive usability. The moisture analyser impresses with its reliability, speed and reproducible measurement results, particularly in sensitive quality control applications. Compared to its competitors, this model stands out thanks to its high storage capacity, versatile drying programmes and above-average precision.
Performance data and technical features
The BM-65 moisture analyser was designed to meet the current requirements of laboratory and production environments and impresses with numerous technical highlights. Its most important performance features include:
- Maximum weighing capacity: 65 g
- Readability: 0.001 g / 0.01%
- Reproducibility: 0.002 g / 0.05%
- Weighing pan diameter: 90 mm
- Memory function: Up to 99 test results, 49 individually programmable user settings
- Heat source: Powerful 400-watt halogen lamp, temperature range 50-160 °C
- Stabilisation time: typically 4 seconds
Numerous weighing units (g, % moisture, % solids, % moisture on a dry basis) are available to adapt to different measurement tasks. Automatic external calibration ensures consistently valid values and makes routine maintenance particularly efficient. For demanding samples, up to three individual temperature ramps can be stored in addition to the standard drying programme - ideal for characterising complex material systems. The large, backlit LCD display ensures high-contrast and easy-to-read measurement results even in difficult lighting conditions. The intelligent memory solution not only makes it easy to retrieve data, but also greatly facilitates the precise evaluation of large sample series. Particularly noteworthy is the high mechanical and electronic stability, which allows even moisture- or temperature-sensitive samples to be reliably examined.
Certifications and standards
The BM-65 has a CE mark. This means that the instrument meets all the basic safety requirements of the European Union. In addition, the manufacturer works according to ISO-certified quality management procedures, ensuring a consistently high production standard and consistent device quality. These certifications make the instrument suitable not only for use in controlled environments in the food industry, but also for laboratories with particularly high regulatory standards. Typical areas of application and specific uses The BM-65 moisture analyser plays a central role in a wide range of industries, especially where precise moisture management is crucial for product quality, shelf life or processing parameters. The most important practical applications include:
-
Raw material testing in the food industry: Monitoring the water content in flour, sugar, dried fruit or dairy products to ensure compliance with standards and shelf life requirements.
-
Quality control in agriculture: Moisture analysis of grain, seeds and silage before and during storage to prevent mould growth and spoilage.
-
Process control in the timber industry: Precise measurement of residual moisture in sawn timber, chipboard or pulp - for process optimisation and to prevent material damage.
-
Rapid analysis in the chemical and pharmaceutical industries: Checking the drying process for powders, granulates or viscous substances, such as polymers, salts or pharmaceutical excipients.
Thanks to its flexible programming, the BM-65 is also suitable for test series with oil-containing seeds, dried milk, herbs or plastics, thus offering a universal platform for demanding moisture determinations.
FAQs about the PHOENIX Instrument BM-65 moisture analyser
How is the device calibrated?
Calibration is performed automatically externally to ensure consistently high measurement accuracy. To do this, follow the steps in the operating instructions and ideally place the device on a vibration-free, level surface.
What heating source is used and why?
A 400-watt halogen lamp ensures fast, consistent and precise sample heating. The wide temperature range from 50 to 160 °C allows flexible drying processes for a wide variety of materials.
Is it possible to store and evaluate data from multiple tests?
Up to 99 test results and 49 individual programmes can be stored directly internally and conveniently retrieved - ideal for documentation and comparative analysis in series measurements.
For which types of samples is the BM-65 particularly suitable?
The device was developed for solids, semi-solids and powdered materials. Typical samples include grain, flour, milk powder, wood, chemicals and pharmaceutical excipients.
Conclusion
The BM-65 moisture analyser is the ideal solution for professional moisture analysis in demanding environments. State-of-the-art technology, high weighing precision, flexible drying concepts and generous storage capacity meet all process and quality control requirements. The device is ideal for laboratories, production facilities and use in industrial conditions where accurate moisture measurements and standard-compliant documentation are required.
