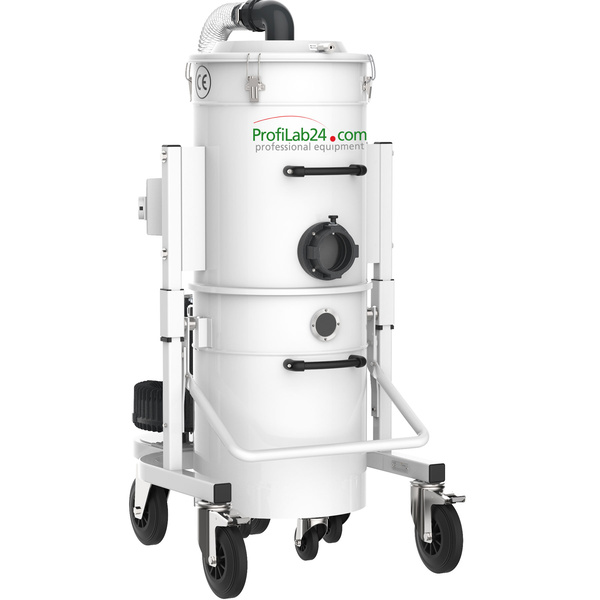

iVISION Industrial Vacuum Cleaner iV2 CLEAN LINE, 100 l

Item number: iVISION_32008!

EAN: 4064343042352

Category: iVISION

Manufacturer: iVISION

2.390,00 €

Excluding 19% VAT. , plus shipping (Sperrgut)

(including 19% VAT. 2.844,10 €)
Power / Air flow max.

There are variations of this item. Please select the variation you wish.


iVISION Industrial Vacuum Cleaner iV2 CLEAN LINE, 100 l
Industrial Vacuum Cleaner for general cleaning

The industrial vacuums of the iV2 Clean line are the most sold wheelable iVision vacuums and are used for intensive collecting of dust and chips (also mixed with oil) generated from the machine tools in metal-mechanical industries and warehouses. This range of industrial vacuums uses side-channel turbines and is used with great success in the world of metal working. Nearly every mechanical office needs an industrial vacuum system and it's for this reason that iVision proposes as a trustworthy and competent manufacture to be in grade of satisfying the needs of their clients.

In addition to the already ample range of wheeled industrial vacuums with side-channel turbines, iVision has created a product with a multitude of specific accessories specific for the world of industrial dust collection related to the iV2 clean line, that render the product ideal for use in every metal-mechanical warehouse.
The extremely low level of noise, the ease of maintenance and above all, the design and use of Italian engine manufacturing, are all part of the fundamental characteristics of the iVision industrial vacuums.

Standard supply:
  1. Side-channel turbine
  2. Silencer mounted as standard
  3. Visual filling indicator
  4. Structure completely in steel
  5. Oil-resistant wheels with parking brake
  6. Container capacity 100 liters
  7. Rapid-release container opening
  8. Pneumatic filter cleaning through vibrating motor
  9. Cleaning set ø 50 mm, Hose winding device, cable winder
Optionals:
  • Remote control start & stop
  • Possibility of inserting PVC bags to collect dust
  • Automatic or semi-automatic filter cleaning system
  • Oil/chip separator tank
  • Liftkit for emptying container with a forklift
  • Antistatic kit
  • Atex Zone 22

iVision vacuums with ATEX-Zone 22 certifcation for potentially explosive environments please on request.

Container capacity (cleaning equipment): 100 l
Power (cleaning equipment): 2.2 kW3 kW4 kW
Max. airflow: to 500 m³/h
Max. negative pressure: 300 mbar310 mbar320 mbar
Product line (cleaning equipment): CLEAN LINE
Type Dust Extractors, Cleaning Devices: Industrial Vacuum Cleaners
Product weight: 115,00 Kg
Dimensions: × × cm
iVISION Clean iV2 2.2- 100- 310 3- 100- 310 4- 100- 310
Frequenzy (Hz) 50 50
Power (kW) 2.2 3 4
Voltage (V) 400 400 400
Water lift max. (mbar) 300 310 320
Air flow max. (m3/h) 310 310 310
Inlet (N°) 1 1 1
Suction inlet (Ø mm) 100 100 100
Volume (l) 100 100 100
Dimensions H x L x W (cm) 152 x 104 x 73 152 x 104 x 73 152 x 104 x 73
Weight (kg) 115 115 115
Please note the following questions for the selection of the correct device:

1. Is the extractor to be connected to a machine tool?

2. Machine manufacturer/model?

3. How many suction nozzles does the machine have?

4. Diameter of the suction nozzles?

5. How far will the aspirator be from the machine?

6. Material to be absorbed? (metal+PVC = extrusion; glass fibre=PCB; etc.)

7. Quantity per day or required container capacity? (38/100/160/160+ Liter etc.)

8. Should the extractor be used during machine operation or should it be used for general company and machine tool cleaning after work?
