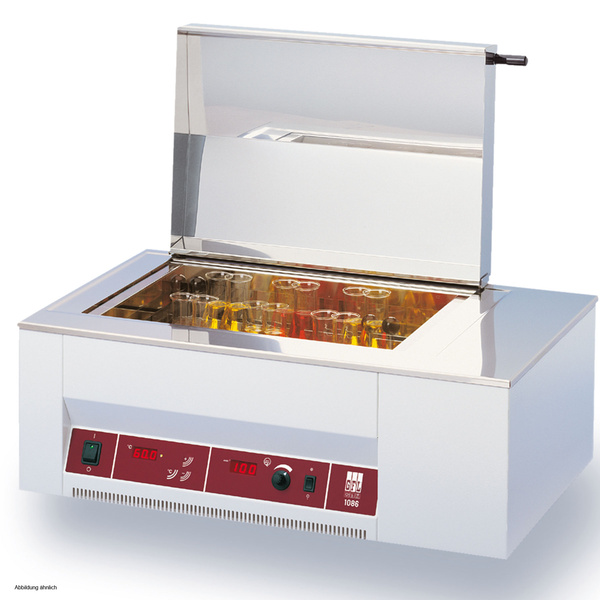

GFL Shaking Water Bath 1086

Item number: GFL_20015>

EAN: 4064343368544

Category: GFL

Manufacturer: GFL

Price on application


GFL Shaking Water Baths are well-known allrounders that stand the test of time in continuous operation. They are made of high-quality, thoroughly tested materials and satisfy most varied demands.

The devices are particularly used whenever exactly reproducible temperatures are required for shaking tasks. Their scope of applications comprises incubations, fermentations, homogenisations, chemical and biochemical reactions, enzyme and tissue studies.
  • Microprocessor-controlled temperature regulation.
  • Excellent temperature constancy: ± 0.1 °C temporal.
  • Optimum temperature distribution throughout the whole bath interior.
  • Digital temperature readout and setting via LED display, in steps of 0.1 °C.
  • Digital display for shaking frequency.
  • Soft touch keys with characteristic symbols.
  • Electronic monitoring; in case of fault, cause is reported on display.
  • Two independently working over-temperature protections.
  • Maintenance-free and low-wear shaking mechanism, continuously adjustable electronic speed control, gentle start-up.
  • Constant speed independent of load.
  • The shaking device is guided on corrosion-resistant special ball bearings.
  • Easily removable shaking rack.
  • Thermal insulating and double-walled arched lid prevents twisting and dropping back of condensed water into the test tubes.
  • Bath interior and shaking rack made of stainless steel.
  • Corrosion proof exterior housing made of electrolytically galvanised sheet steel, powder-coated.
  • Built-in cooling coil for applications below ambient temperature as a standard scope of supply.
  • Drain cock at the back of the bath.

Heating bath model: water/fluid bathshaking bath
Heating bath temperature max.: 99,9°C
Heating bath volume: 20 l
Cooling: yes
Shipping weight: 32,50 Kg
Product weight: 28,20 Kg
Dimensions: × × cm
Temperature range approx. 5 °C above ambient temperature to +99.9 °C
Temperatur range (operation with water level regulator) approx. 3 °C above tap water temperature to +99.9 °C
Temperature range (operation with cooling coil)
+10 °C to +99.9 °C
(depending on cooling medium and ambient temperature)
Capacity approx. 20 l
Shaking motion reciprocating, with on / off switch
Shaking frequency from 10 - 250 min-1
Shaking amplitude  22 mm
Working height of bath (including lid) 190 mm (above shaking rack)
Max. water level above shaking rack / tray 105 mm / 90 mm
Inner dimensions (W x D x H)  450 x 300 x 160 mm
Exterior dimensions (W x D x H) 715 x 520 x 330 mm
Electrical connection
230 V / 50...60 Hz / 1,5 kW
(other voltages and frequencies on request)
Net / gross weight approx. 30.0 / 34.0 kgs
Packing volume approx. 0.29 m3
