PCE Instruments Air Flow Meter PCE-WSAC 50W 230

Item number: PCE_37020>

EAN: 4064343118972

Category: Measurement Technology

Manufacturer: PCE Instruments

1.189,90 €

Excluding 19% VAT. , plus shipping (Standard)

(including 19% VAT. 1.415,98 €)


Reliable measurement precision thanks to the WSAC 50W 230 from PCE Instruments

Whether in the investigation and analysis of enzymatic processes, in biochemistry and in the chemical or construction industry: the measuring instruments from PCE Instruments are used in a wide range of applications. With its new, smart application method, the WSAC 50W 230 ensures very accurate measurement results. Our regular and also many new customers use this model in various professional fields. The robust housing but also the modern processes ensure value stability and reliability of the WSAC 50W 230. Additional special features of the measuring instruments from PCE Instruments are an increased flexibility due to the handy processing and functional designs as well as the option, depending on the device type, to record your data digitally and thus to store them safely. Furthermore, depending on the model, you can count the following functions among the components:

  • a selection and setting of various measuring times
  • user-friendly operation
  • the option to add software for monitoring
  • a secure and watertight design
  • and, depending on the model, much more. We will be happy to advise you on this.

The technical details of the WSAC 50W 230 at a glance

In addition to its great flexibility, the reliable acquisition of information plays an increasingly important role in numerous laboratory and industrial activities these days. This model works quickly and very accurately, providing you with reproducible measurement results in any working environment. Like many of the manufacturer's other instruments, this model is battery- and/or accumulator-powered, making it easy to transport. Take a look at all the features of the WSAC 50W 230:

Measurement type: anemometer, airflow meterDisplay: LCD, backlitWeight: 650 g, 680 g (sensor with standard bracket), 900 g (sensor with self-levelling bracket)Dimensions (in mm): 145 x 95 x 125 (display), 320 x 110 x 100 (sensor)Housing material: plastic, robust, PA+FGPower supply: Battery

Our trained service team will always provide you with information about further equipment features.

We will find the ideal offer for you

Our expert service team will make sure you get the right materials for your lab. Do you have any questions about our wide range of models, their advantages or the respective brand manufacturers?

We will be happy to advise you and can always be reached by phone at +49 (0)30-403 667 940 or by e-mail at [email protected]. We look forward to hearing from you!


Dimensions (in mm): 320 x 110 x 100 (sensor)145 x 95 x 125 (display)
Display (metrology): backlitLCD
Housing (metrology): PA+FGrobustPlastic
Weight, approx.: 900 g (sensor with self-levelling bracket)680 g (sensor with standard holder)650 g
Measurement type: Air flow meterAnemometer
Protection class (measurement technology): IP 65
Power supply via: Battery
PCE air flow meter PCE-WSAC 50W 230
Display
Input pulse
Analog (4 to 20 mA)
Radio
Radio IEEE 802.15.4 ISM 2.4 GHz
Units km/h
mph
m/s
Power supply for sensors +15 V DC
Analog output 4 to 20 mA
Maximum input impedance 500 ohms
Resolution of the analog output 10 bits
Accuracy of analog output ±1.5%
Alarm relay maximum 250 V AC, 8 A

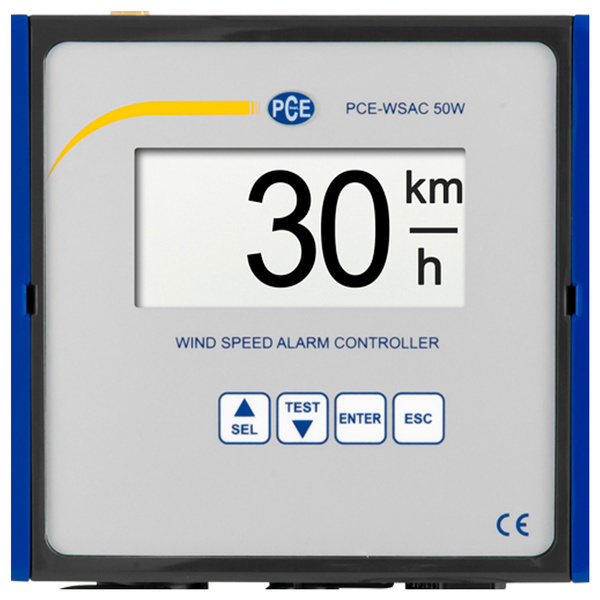

Display Backlit 128 x 64 pixel LC display
Goäuse Rugged plastic case
protection class IP65
Dimensions 145 x 95 x 125 mm
Weight 650 g
Sensor
Measuring range 4 to 180 km/h
Minimum starting speed 8 km/h
Accuracy ±1 km/h in the range 4 to 15 km/h
±3 % in the range 16 to 180 km/h
Power supply Battery mono cell D 1.5 V DC
Energy consumption approx. 0.3 W at 1.5 V DC power supply
Gehäusematerial PA + FG
Ball bearing Stainless steel X65Cr13
Bracket Stainless steel AISI 304
Weight with standard bracket approx. 680 g
Weight with self-leveling mount approx. 900 g
Dimensions 320 x 110 x 100 mm
Storage temperature -35 to +70 °C
Environmental temperature -20 to +70 °C
Ingress Protection IP65
Scope of delivery:

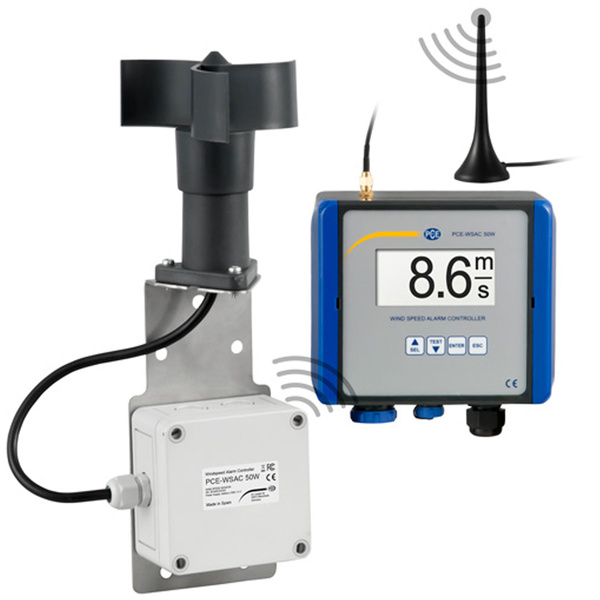

  • 1 x Anemometer warning system PCE-WSAC 50W 230
  • 1 x wind sensor of the wind warning system
  • 1 x self-leveling additional bracket
  • 1 x radio antenna
  • 1 x battery mono cell D 1.5 V DC
  • 1 x instruction manual
