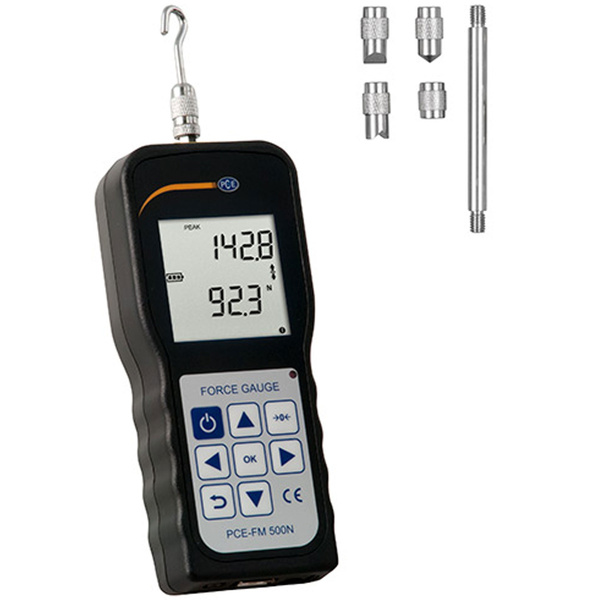

PCE Instruments Dynamometer PCE-FM 500N

Item number: PCE_37240>

EAN: 4064343268929

Category: Measurement Technology

Manufacturer: PCE Instruments

Price on application

Product price on request.


Reliable measurement accuracy with the FM 500N from PCE Instruments

In our online range you will find quality measurement technology such as force gauges, moisture analyzers, data loggers and a large number of compact and mobile devices for analysis and testing. With its modern, sophisticated application, the FM 500N ensures extremely accurate measurement results. Our regular and also many new customers use the FM 500N in various professional fields. The dimensionally stable outer housing and the latest technology guarantee lasting value and reliability. Additional benefits of the measuring devices are the great flexibility due to the handy processing and practical designs as well as the possibility, model, to record your data digitally and thus to save them in the best possible way. In addition, depending on the model, you can count the following functions among the components:

  • variable and individually adjustable measuring times
  • user-friendly operation
  • the possibility of adding tools for monitoring
  • a safe, robust and waterproof construction
  • and, depending on the model, much more. We will be happy to advise you on this.

The technical details of the PCE Instruments Dynamometer PCE-FM 500N at a glance

In addition to simple handling, the protected acquisition of data in the very different fields of work in the laboratory and industry now plays a relevant role. The xx from PCE Instruments works quickly and very accurately and provides you with reproducible results for your field of expertise. Like many other devices of the manufacturer, this model is also battery- and/or accumulator-operated and can therefore be transported without any problems. Take a look at all the features of the FM 500N:

Measurement type: Force gaugeDisplay: LCDWeight: 1 kgPower supply: Mains adapter, rechargeable battery

For more detailed information about the product features of the FM 500N, please contact our expert service team.

Would you like more information about this model?

Our team of qualified experts will make sure that you get the best equipment for your application. Do you have any questions about our various units, their features or the respective brand manufacturers?

We look forward to hearing from you and will be happy to assist you. You can reach us by phone at +49 (0)30-403 667 940 or by e-mail at [email protected].


Display (metrology): LCD
Weight, approx.: 1 kg
Measurement type: Force gauge
Power supply via: Power supply unitBattery
Shipping weight: 2,00 Kg
Product weight: 1,00 Kg
PCE Instruments Dynamometer PCE-FM 500N
Measuring range 5 to 500N
Resolution 0.1N
Pressure calibration 1 Mpa
Force cell Integrated load cell with M6 connection
Measuring range 1 to 100% of full scale
Measurement accuracy ± 0.5 %
Units N
kg
lb
Display LCD
Power supply Internal battery
Power supply 12 V / 1 A
Operating temperature +10 to +30 °C
relative humidity 15 to 80% relative humidity
Weight 1 kg
Working conditions Do not place equipment near sources of vibration or corrosive substances
Scope of delivery:
  • 1 x Dynamometer PCE-FM 500N
  • 1 x Software
  • 1 x USB cable
  • 1 x flat head adapter
  • 1 x hook adapter
  • 1 x ball head adapter
  • 1 x Meißelkopfadapter
  • 1 x notch head adapter
  • 1 x adapter für extension rod
  • 1 x extension rod (65 mm)
  • 1 x charging adapter
  • 1 x device case
  • 1 x instruction manual
