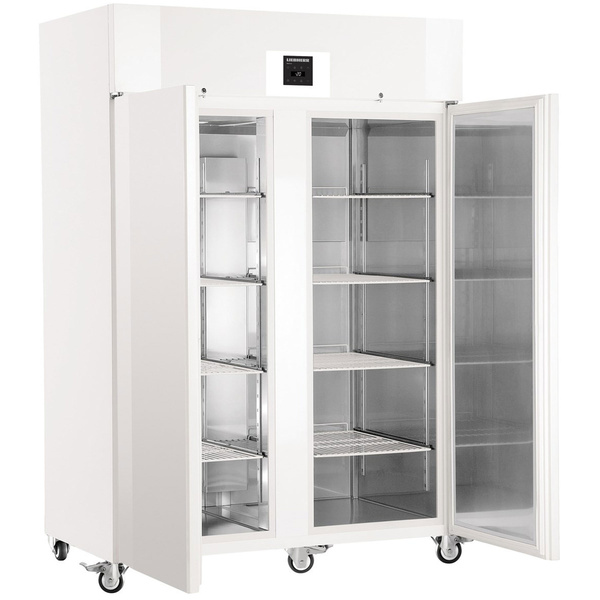

Liebherr Laboratory freezer LGPv 1420 MediLine

The Smart Monitoring RS 485 connection plug

The Liebherr SmartMonitoring hardware equipment also includes a SmartMonitoring RS 485 connection plug. This must be presentin all refrigerators or freezers to be integrated. This is because the connector is used to connect to the SmartCoolingHub and contributes to the network of the complete SmartMonitoring system.

The three connection poles of the connector allow you to ideally connect to your device and RS485 patch cable. Connect one side of the connector to the device and use the other side to connect the Liebherr Smart Cooling Hub.

Expand your Liebherr Smart Monitoring System

To best network and monitor your equipment, you need several SmartMonitoring components. These are made up of hardware and software:

• Smart Cooling Hub
• SmartMonitoring RS-485 patch cable 5 m (one cable per cooling unit)
• SmartMonitoring license

Note: When purchasing a SmartCooling Hub, the following accessories are already included in the package and do not need to be purchased separately:

• • SmartMonitoring RS 485 connector plug (one plug per cooling unit).
  • SmartMonitoring RS-485 patch cable 5 m (one cable per cooling unit)
  • SmartMonitoring license

More about Liebherr Smart Monitoring

With Liebherr's Smart Monitoring System, you can monitor all your equipment around the clock. And this is independent of the area of application. So it doesn't matter whether you are in the medical or food industry, for example. The system offers both ideal equipment protection and a high level of safety in terms of temperature control.

The hardware and software combination of the system has access toall measurement and operating data of your Liebherr equipment. Alarms, temperature deviations and changes in equipment status are visually processed, recorded and displayed and can be monitored 24 hours a day, every day. With a single click, you get reporting and direct reports on the quality process.

Should the power ever fail, this is no problem either. Firstly, you are notified immediately and secondly, the system stores the entire history. This allows you to perform a fault analysis afterwards. The encryption process is compatible with the current DSGVO regulations. As you can see, security is a top priority here.

Do you have any questions about Liebherr SmartMonitoring? Then our experienced team is available to you at any time!

The SmartMonitoring RS 485 patch cable 5 m

In addition to the connection plug, you also need a suitable connection cable for each Liebherr refrigerator and freezer connected to the Smart Monitoring System. The Smart Monitoring RS 485 patch cable 5m. It acts as the connection point between the plug and the Smart Cooling Hub. With its length of 5 meters, there is sufficient scope to ensure spatial distribution for each individual device.

The cable, like the plug, has a3-wire connection. This allows you to connect the interface quickly and easily. Additionally thecable is ModBUS suitable. This means thatcontrol can also be carried out without any problems.

What else you need for your Liebherr Smart Monitoring System

In order to network and monitor your equipment in the best possible way, you need several SmartMonitoring components. These are made up of hardware and software:

• Smart Cooling Hub
• SmartMonitoring RS 485 connection plug
• SmartMonitoring license

Note: When purchasing a SmartCooling Hub, the following accessories are already included in the package and do not need to be purchased separately:

• • SmartMonitoring RS 485 connection plug (one plug per cooling unit).
  • SmartMonitoring RS 485 patch cable 5 m (one cable per cooling unit)
  • SmartMonitoring license

Safe and proper storage with the Smart Monitoring System

Monitor your equipment around the clock! With the intelligent Smart Monitoring System, you can monitor all your Liebherr appliances, such as refrigerators or freezers, over the long term. And this is completely independent of the application area in which you operate. The system guarantees optimum protection of the connected equipment and a high level of safety in terms of temperature control for your stored goods.

The system's hardware and software combination gains access to all measurement and operating data of your connected Liebherr equipment. Alarms, temperature changes and equipment status deviations can be visually processed, recorded, displayed and monitored 24 hours a day. Get quality process reports and direct reports with just one mouse click.

You are notified directly in the event of network outages. The system also stores the entire history of your data. This allows you to perform error analysis afterwards without any problems. The encryption process is compatible with the current DSGVO regulations. As you can see, the topic of security has the highest priority, just like with all other Liebherr devices.

If you have any questions about Liebherr SmartMonitoring or the accessories, our team is available at any time and will be happy to advise you individually. Simply contact us.

The Liebherr Smart Monitoring System was developed to enable professional monitoring of the Liebherr refrigerator at all times. It provides both appliance protection and security. This can be associated with many sensitive areas. Think of refrigerated medicines in the laboratory and fresh food in the catering industry. Here you can see what Liebherr Smart Monitoring is and what additional components you need.

The Liebherr Smart Monitoring licence

The Liebherr Smart Monitoring licence completes the system on the software side so that you can use all the functions of this intelligent monitoring system. Individual modules can be tailored to your individual needs, so you can see all the important information at a glance.

A clear dashboard of the basic functions of this licence gives you access to the graphic display of all connected Liebherr refrigerators, making your work much easier. There are also alarm logs, email notifications, temperature reports and role-based user and device management.

Your Liebherr SmartMonitoring System- we will be happy to advise you.

Feel free to contact our experienced team of consultants who will be happy to help you set up your Liebherr system. Whether you need information on the version of the Liebherr Smart Monitoring System or information on individual features or devices, we will support you at any time. You can reach us all day by telephone on +49 (0) 30403 667 940 or by e-mail at [email protected].
