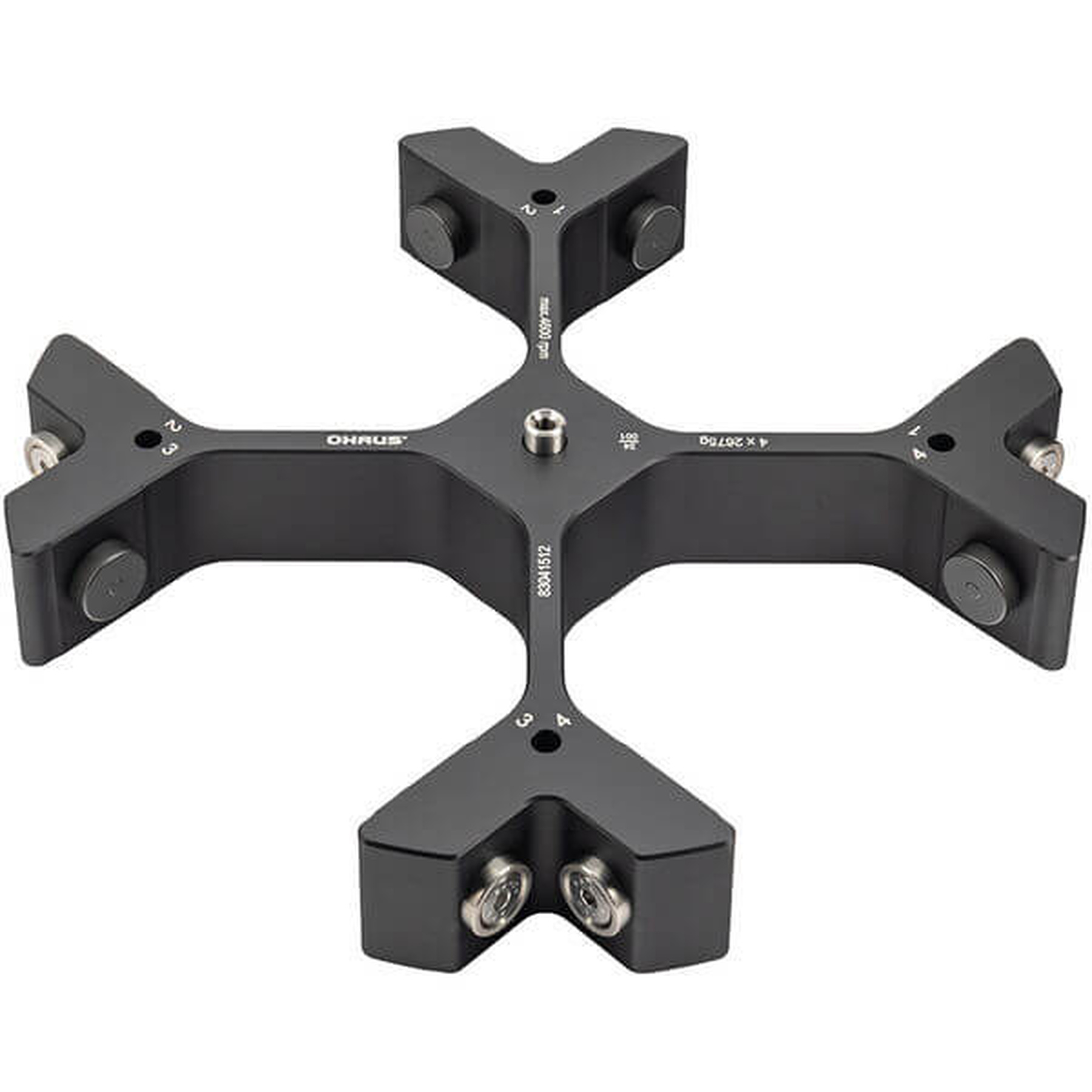

OHAUS Frontier 5000 swing-bucket rotor R-S4X1000/4MIS
This swing-bucket rotor is ideal for demanding centrifugation applications in laboratories and research environments. Users benefit from high reliability, easy handling and a robust design that can withstand even intensive sample preparation processes. Compared to other rotors, this model scores with its enormous flexibility, especially when large quantities of samples need to be processed in all common tube shapes. Its sophisticated design also allows for quick installation, which saves valuable working time.
Maximum performance for efficient sample preparation
The rotor was primarily developed to process a large number of samples in the shortest possible time. Its swing-out technology increases efficiency in routine and specialised applications, as the samples are positioned at a horizontal angle during centrifugation. This creates ideal conditions for homogeneous separation of particles or cells and makes the rotor a reliable partner in established laboratory processes, such as blood preparation, clarification of samples or isolation of components in biotechnology.
The robust design made of high-quality aluminium alloy or polypropylene not only ensures stability, but also enables easy cleaning. Thanks to the autoclavable design, the device remains fully functional even under demanding conditions - including temperatures from -20 °C to 50 °C. This makes it suitable for a wide range of applications in which consistency and reliability play a key role, for example in cell culture, microbiological procedures or sample analysis with sensitive biomaterials. Another advantage is the quick disassembly, so that operators can exchange samples quickly without compromising valuable laboratory resources.
Technical highlights
- Maximum speed: 4600 rpm
- Relative centrifugal force (RCF): 5024 g
- Capacity: 4 × 1000 ml (high capacity for large sample volumes)
- Rotor detection: Automatic identification in the associated frontier system
- Aerosol tightness: Various sealing systems available
- Aerosol-tight working: Enables safe handling of potentially infectious materials
- Operating environment: Temperature range from -20 °C to 50 °C
In addition, with an outer radius of 22 cm, the rotor has a generous swivelling radius that handles sample containers particularly gently during acceleration and deceleration. Acceleration times of 329 or 85 seconds and deceleration times of 1068 or 51 seconds (depending on the settings) allow finely tuned control in everyday laboratory work. Thanks to its maximum load weight of up to 1300 g, it is also very resilient.
Examples of use
- Separation of sediments and supernatants in microbiological laboratories, for example when centrifuging bacterial cell cultures
.
- Clarification of liquids in food technology, for example when removing suspended solids from fruit juice samples.
- Extraction of DNA samples in molecular biology, where high throughput and contamination-free work is required.
- Isolation and preparation of blood components in clinical diagnostics, for example when separating blood plasma.
FAQs
How is the rotor maintained and cleaned?
Maintenance only requires regular visual inspection for damage and cleaning with mild detergents. Thanks to the smooth surfaces, the material can be cleaned quickly. Autoclaving is possible in many cases, which ensures the highest level of hygiene.
What certifications are available
The appliance is generally CE-compliant. OHAUS attaches great importance to quality and manufactures rotors that comply with current safety and manufacturing standards.
Can the rotor also be used with other centrifuge models?
Compatibility depends on the centrifuge model in question. According to the manufacturer, the rotor fits FC5917RF, for example. Before use, you should always check whether the parameters such as speed and capacity match the respective device.
What needs to be considered when handling sensitive or infectious samples
An aerosol-tight design is recommended for potentially hazardous samples. This minimises accidental contamination. Please observe the relevant laboratory guidelines and always wear suitable protective equipment.
Conclusion
The Frontier 5000 swing-out rotor impresses with its high reliability, maximum flexibility and easy installation in everyday laboratory work. With its versatile features and robust materials, it is ideal for a wide range of applications. Whether in clinical diagnostics, biotechnology or in research and industrial environments: Thanks to consistent results and easy handling, the rotor brings significant added value for efficient centrifugation processes and reproducible results at all times. Anyone looking for a durable rotor with a large capacity and high performance will benefit from the sophisticated design and convenient features of the OHAUS Frontier 5000 swing-bucket rotor R-S4X1000/4MIS.
