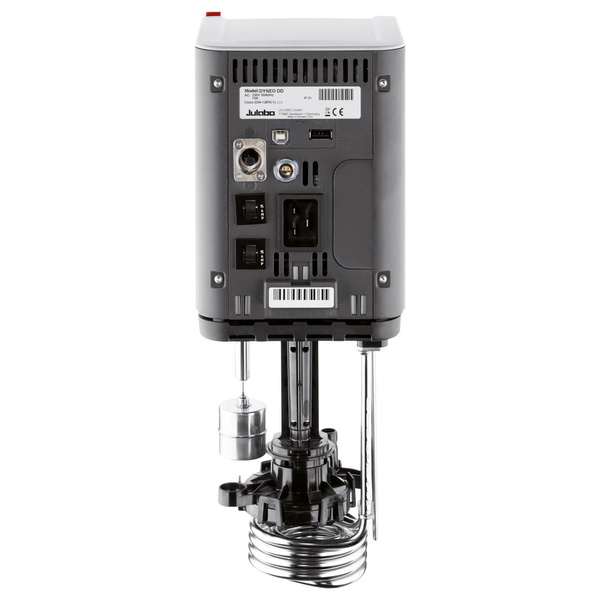

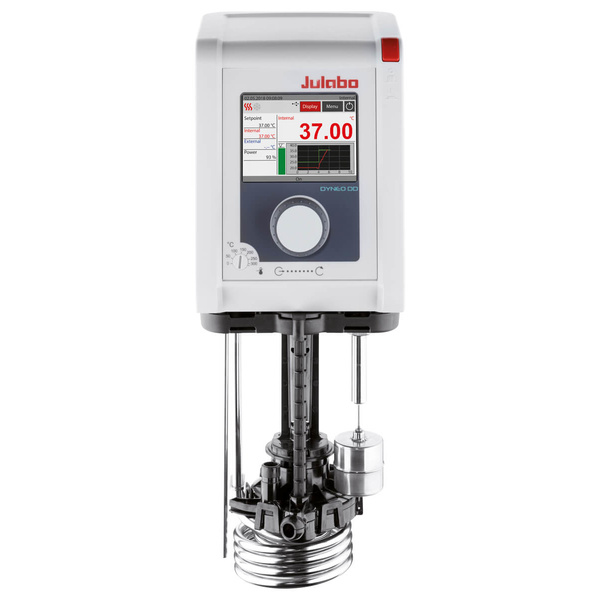

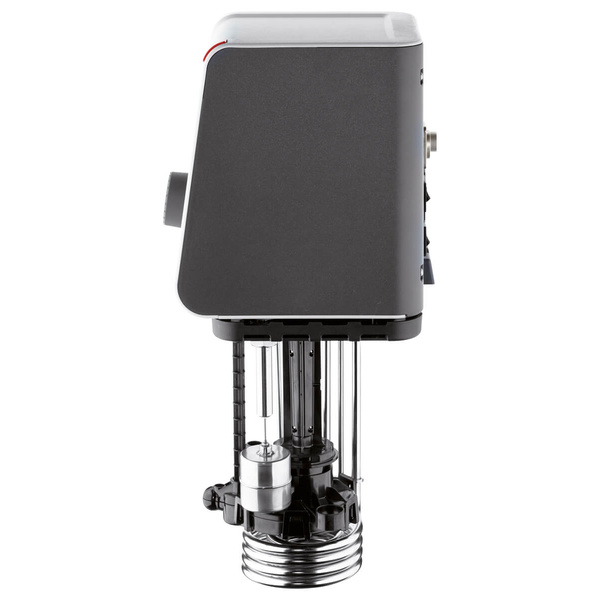

Julabo Heating Immersion Circulator DYNEO DD

Julabo DYNEO DD immersion bath

Specially developed for laboratory applications, the Julabo DYNEO DD immersion bath sets standards in the precise and flexible temperature control of liquids. Thanks to its robust construction, easy handling and high-precision control, the device is ideal for demanding routine processes in microbiological, histological, clinical and industrial environments. Innovative features such as a large-format TFT display and flexible setting options give this thermostat decisive advantages over comparable laboratory devices. High-precision temperature control for professional use The DYNEO DD offers outstanding heating power of 2000 W, ensuring fast heating times and precise temperature control in the range from +20 °C to +200 °C. The sensitive control with a temperature stability of ±0.01 °C makes the system the first choice for demanding sample preparations and simulation tasks. Another special feature is the convenient control via an intuitive 3.5" TFT colour display, which always clearly shows the measured values and settings and ensures ease of use even under demanding laboratory conditions.

Key performance data at a glance:

• Heating power: 2000 W for fast and efficient temperature control
• Temperature range: +20 °C to +200 °C for versatile applications
• Temperature stability: ±0.01 °C for reliable results
• LCD colour display (3.5 inches): Precise and clear display of all parameters
• Pump capacity: 8-23 l/min (flow rate), 0.1-0.6 bar (delivery pressure)
• Easy interface integration (including USB) for external control and documentation
• Compact design (13.2 x 16 x 35.5 cm) and low weight (2.5 kg) for easy integration into existing system landscapes

These core functions are complemented by a flexibly adjustable immersion depth of 16 cm and the option to choose between different voltage variants (100-115 V/50-60 Hz or 200-230 V/50-60 Hz). An optional cooling coil extends the range of applications to include additional cooling tasks and also enables processes in thermally sensitive environments. The low noise level contributes to a pleasant working environment.

Outstanding features include the digital and multilingual user interface, numerous pre-programmable temperature profiles and minimal maintenance requirements. The DYNEO DD therefore scores highly in terms of durability and cost-effectiveness. Certifications and standards The device complies with all European and international safety and quality standards applicable to laboratory and industrial thermostats. These include, in particular, CE conformity and compliance with relevant DIN regulations for laboratory equipment. This guarantees reproducible quality, user protection and reliability in daily use. Typical areas of application in the laboratory environment Thanks to its flexible setting options, robust construction and precise control, the DYNEO DD can be used efficiently for a wide range of applications. Typical examples include:

• Microbiological laboratories: Reliable temperature control of culture media, cultivation and incubation of microorganisms in water baths.
• Histological laboratories: Temperature control during fixation and staining of tissue samples, especially for paraffin baths.
• Clinical laboratories: Precise temperature control during the analysis of blood or urine samples, for example for enzyme reactions and serum analyses.
• Environmental laboratories: Temperature-controlled water and soil analyses with different types of solvents.
• Reactor temperature control: Thermostatic control in chemical syntheses, e.g. with solvents such as ethanol, methanol or various oils.
• Temperature simulation: Performing thermal shock and simulation tests using precise temperature cycles.

Suitable temperature control fluids are water, glycerine, silicone and mineral oils or common laboratory baths with a maximum viscosity of up to 50 cSt.

FAQs

How is the DYNEO DD installed in everyday laboratory use?

• The thermostat is attached to the edge of a bath or vessel using a clamp. Installation requires no tools and allows quick switching between different vessels.

Which liquids are permitted for use?

• Water, laboratory silicone oils, mineral oils or glycol-water mixtures with a maximum viscosity of 50 cSt are suitable. Please take the chemical resistance of the device into account.

How accurately can the temperature be controlled?

• Control is digital via a central rotary knob and the colour 3.5" display. The temperature can be adjusted in increments of 0.01 °C with excellent reproducibility.

What options are available for documentation and control of external devices?

• The device is compatible with a USB connection for PC-based control and data recording. The optional software solutions allow programmes to be individually designed and monitored.

Is cooling operation possible without external cooling?

• Active cooling is possible with the optional cooling coil. Otherwise, cooling is provided by the ambient medium and reaches a minimum temperature of +20 °C.

Are there any special maintenance requirements?

• The system is designed to require minimal maintenance. Regular cleaning of the temperature control bath and occasional checking of the seals are recommended.

What voltages can the device be used with?

• Versions are available for 100-115 V and 200-230 V mains voltage, ensuring worldwide use in various laboratory infrastructures.

Conclusion

With its powerful heating technology, precise temperature control and flexible application options, the DYNEO DD is a professional solution for demanding temperature control tasks in research laboratories and industry. The combination of intuitive operation, high-quality workmanship and comprehensive safety and standard features makes the thermostat an investment in efficiency and reliability in everyday laboratory work.
