uv technology meyer UV-C module UV-TEAM-CL

Item number: MEYER_26006

EAN: 4064343387798

Category: uv-technik meyer

Manufacturer: uv-technik meyer

Price on application
Model

There are variations of this item. Please select the variation you wish.

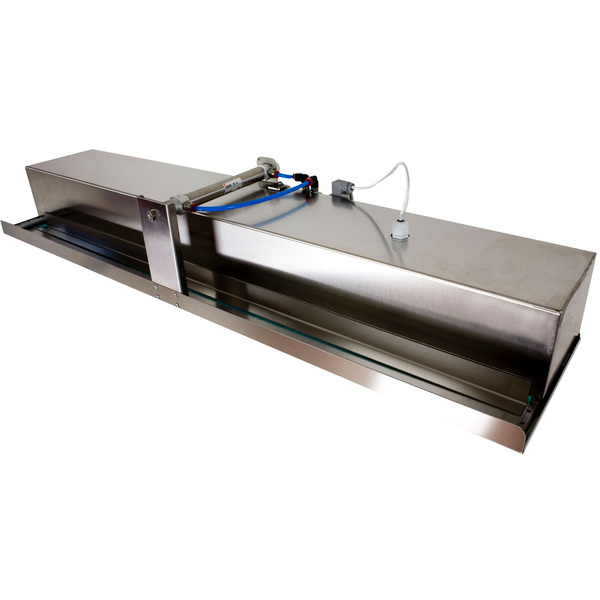

uv-technik meyer UV-C module UV-TEAM-CL
Surface disinfection for belts in conveyor and production systems
Permanently prevents contamination and the spread of germs. Increases safety significantly.
  • A large-scale disinfection of your conveyor belts efficiently prevents the spread of infectious agents of all kinds
  • The costs for extensive cleaning and disinfection are drastically reduced
  • Reliably prevents contamination with mould spores and germs up to 99.99 %.
  • The simple installation is done by your plant manufacturer within a short time
Properties:
  • Different power levels available in length and width
  • Completely made of stainless steel
  • All components are UV-compatible
  • Low installation effort
  • Control board (master) with various control tools
  • Optional with shutter system
  • CE marking (LVD, EMC, MD, RoHS)
  • HACCP compliant available
Areas of application:
Wherever sensitive products such as food supplements, pharmaceuticals and cosmetics are manufactured, sorted or packed, the highest degree of sterility is essential.

With adequate UV-C disinfection, a microbiologically safe environment can be created throughout the entire production process.

As a result, a considerably higher product quality with an extended minimum shelf life is achieved.

The UVC radiation has a strong germicidal effect on the ambient air and surfaces.

By targeting the surfaces to be treated, they are effectively disinfected by the direct UV-C effect.


Please select a model.

Width: up to 600 mm1001 mm - 1100 mm
Disinfection: Surface
Device type: UV Sanitizerlamp
Height: up to 500 mm
Depth: up to 500 mm
uv-technik meyer UV-TEAM-CL 2/40H 4/40H 6/40H 8/40H 2/90H 4/90H 6/90H 8/90H
Power consumption (W) 80 160 240 320 180 360 540 720
Mains voltage (V / Hz) 230/50 230/50 230/50 230/50 230/50 230/50 230/50 230/50
Protection class IP55 IP55 IP55 IP55 IP55 IP55 IP55 IP55
Length of connection cable (m) 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
Dimensions LxWxH (mm) 518x154x107 518x250x107 518x378x107 518x472x107 1003x154x107 1003x250x107 1003x378x107 1003x472x107
Recommended lamp replacement (h) 9000 9000 9000 9000 9000 9000 9000 9000
Replacement lamp/ part no. A003389 A003389 A003389 A003389 A003926 A003926 A003926 A003926
