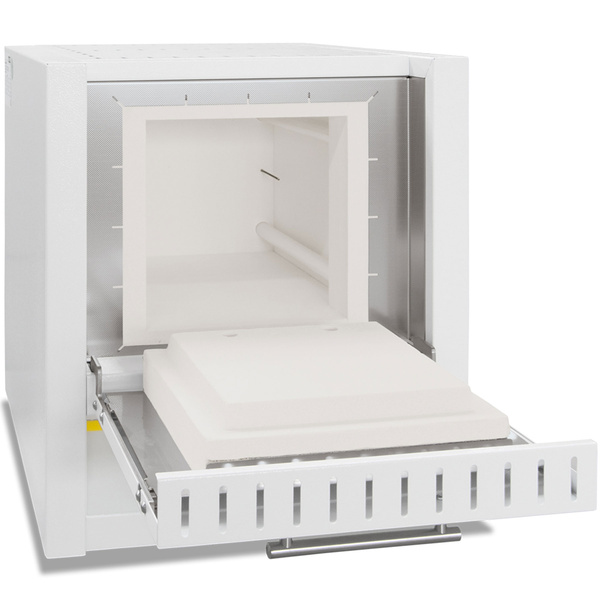

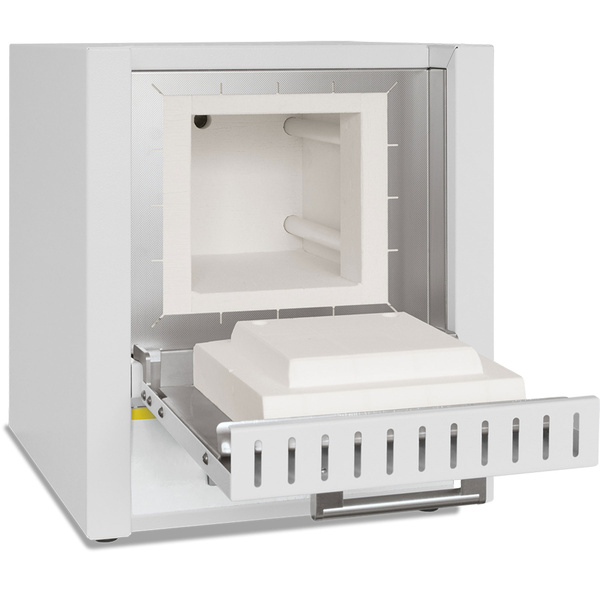

Nabertherm Compact Preheating Oven with Hinged Door
Item number: NAB_8148
EAN: 4064343427265
Manufacturer:
Nabertherm
starting from
1.719,50 €
Manufacturer’s suggested retail price:
1.810,00 €
Excluding 19% VAT. ,
plus
(Sperrgut)
(including 19% VAT. 2.046,21 €)
- Model/ Controller
-
There are variations of this item. Please select the variation you wish.
Nabertherm Compact Preheating Furnace with Hinged Door
The compact preheating furnaces are the perfect partner for the dental laboratory and offer a very good price/performance ratio. They are characterised by very fast heating times and an attractive design. Quality features such as the double-walled stainless steel housing, the compact, lightweight design and the heating elements in quartz glass tubes make this preheating furnace the right partner for your dental applications.
- Tmax 1100 °C, working temperature 1050 °C
- Heating from two sides by heating elements in quartz glass tubes
- Maintenance-friendly exchange of heating elements and insulation
- Furnace chamber insulation made of non-carcinogenic fibre material
- Housing made of textured stainless steel sheets
- Double-walled housing for low outside temperatures and high stability
- Hinged door that can also be used as a shelf
- Exhaust air opening in the rear wall
- Low-noise operation of the heater with solid-state relay
- Compact dimensions and low weight
- Space-saving controller under the door
- Intended use within the scope of the operating instructions
Additional equipment:
- Exhaust stack, exhaust stack with fan or catalytic converter (except LE 1 and LE 2). For the burnout of muffles and for speed investments, we recommend the use of a catalytic converter.
- Over-temperature limit controller with adjustable shut-off temperature for thermal protection class 2 according to EN 60519-2 as over-temperature protection for the furnace and the load.
- Protective gas connection for purging the oven with non-flammable protective or reaction gases
- Manual gas supply system
Please state the required supply voltage when ordering.
|
Width outside (oven):
|
290 mm330 mm390 mm440 mm490 mm
|
|
Width inside (oven):
|
90 mm110 mm170 mm220 mm260 mm
|
|
Height outside (oven):
|
410 mm470 mm520 mm590 mm
|
|
Height inside (oven):
|
110 mm170 mm220 mm280 mm
|
|
Power (oven):
|
1,6 kW1,9 kW2 kW3,2 kW3,5 kW
|
|
Stove appliance type:
|
chamber and muffle furnaceburnout furnace
|
|
Oven volume:
|
1 l2 l6 l14 l24 l
|
|
Oven temperature max.:
|
1100°C
|
|
Depth outside (oven):
|
280 mm390 mm440 mm540 mm570 mm
|
|
Depth inside (oven):
|
115 mm180 mm200 mm300 mm330 mm
|
| Model |
Tmax
[°C]1
|
Internal dimensions
W x D x H [mm]
|
Volume
[l] |
External dimensions2
W x D x H [mm]
|
Connected load
[kW] |
Electrical
connection* |
Weight
[kg] |
Heating time
[min]3
|
| LE 1/11 |
1100 |
90 x 115 x 110 |
1 |
290 x 280 x 410 |
1,6 |
1-phase |
15 |
10 |
| LE 2/11 |
1100 |
110 x 180 x 110 |
2 |
330 x 390 x 410 |
1,9 |
1-phase |
20 |
15 |
| LE 6/11 |
1100 |
170 x 200 x 170 |
6 |
390 x 440 x 470 |
2,0 |
1-phase |
27 |
30 |
| LE 14/11 |
1100 |
220 x 300 x 220 |
14 |
440 x 540 x 520 |
3,2 |
1-phase |
35 |
35 |
| LE 24/11 |
1100 |
260 x 330 x 280 |
24 |
490 x 570 x 590 |
3,5 |
1-phase |
42 |
40 |
1 Recommended temperature for longer holding times 1050 °C
2 External dimensions vary for versions with additional equipment.
3 Approximate heating time of the empty, closed oven in minutes up to Tmax -100 K (with connection to 230 V 1/N/PE).
* 1phase: All ovens are available for supply voltages from 110 V to 240 V, 50 or 60 Hz.
