PCE Instruments Anemometer PCE-VA 20-SET

Item number: PCE_37002>

EAN: 4064343133258

Category: Measurement Technology

Manufacturer: PCE Instruments

408,90 €

Excluding 19% VAT. , plus shipping (Standard Light)

(including 19% VAT. 486,59 €)


This makes measuring fun again!

In our online catalogue you will find an overview of quality measuring instruments such as data loggers, material moisture meters, anemometers, differential pressure meters and many more. The PCE Instruments anemometer PCE-VA 20-SET helps you with its reliable construction to carry out your measuring activities as precisely as possible. A sturdy housing and the latest technology guarantee lasting value and reliability. Convince yourself of additional advantages such as great flexibility through the mobile design and fast data acquisition and/or storage. In addition, depending on the measuring device, you can count the following functions among the equipment:

  • variable and individually adjustable measuring times
  • user-friendly menu navigation
  • the option to add software for monitoring
  • a special level of safety and protection against splash water
  • and, depending on the model, much more. We will be happy to advise you on this.

All features of the VA 20-SET at a glance

In addition to great flexibility, the protected acquisition of information is now playing an increasingly important role in the very different activities of laboratory and industry. The device works quickly and precisely and provides you with reproducible measurement results in your field of application. Like some of the manufacturer's other measuring instruments, the VA 20-SET is battery- and/or accumulator-operated and can therefore be easily transported. It also has an automatic switch-off function (20 minutes), which ensures greater energy efficiency. Take a look at all the details of the VA 20-SET:

Measurement technology type: anemometer, flow meter, air flow meter, wind meter, HVAC meter, volumetric flow meter, impeller anemometer, ventilation tester, wind meter, wind warning device, pitot tube anemometer, hot-wire anemometerDisplay: LCDWeight: approx. 200 gDimensions (in mm): 269 x 106 x 51Power supply: Battery

Would you like to find out more about our products and specifically about the model VA 20-SET from PCE Instruments?

Do you have any questions about the product?

Our team of trained professionals will make sure you get the right materials for your field. Do you have questions about the versatile articles, their functions or the respective brand manufacturers?

We are extremely happy to support you and are available around the clock by phone at +49 (0)30-403 667 940 or by e-mail at [email protected]. We look forward to getting in touch with you!


Dimensions (in mm): 269 x 106 x 51
Display (metrology): LCD
Automatic switch off: 20 minutes
Weight, approx.: approx. 200 g
Measurement type: Air flow meterFlow meterHot-wire anemometerAnemometerPitot tube anemometerAnemometerVentilation testerImpeller anemometerVolumetric flow meterHVAC measuring deviceWind meterWind warning device
Power supply via: Battery
resolution.
PCE Anemometer PCE-VA 20-Set
Measuring range wind speed 0.2 to 30 m/s
Accuracy wind speed <20 m/s: ± (1.5% MW + 0.3 m/s)
>20 m/s: ± (3% MW + 0.3 m/s)
Measuring range air temperature -20 to +60 °C
Accuracy air temperature ±0.06 °C
Resolution air temperature 0.1 °C / °F
Humidity measurement range 0.1 to 99.9% RH
Humidity accuracy ±3 % RH (at 25 °C and 10 to 90 % RH), otherwise: ±5 % RH
Humidity0.1 % r.H.
Response time temperature 60 seconds
Humidity response time 60 seconds
Update LCD 1 x per second
Display wet bulb temperature -20 to +59.9 °C
Dew point temperature display -5 to +59.9 °C
Volume flow rate display 0 to 99999 m3/min
Resolution volume flow rate 0.1 m3/min (0 to 9999.9 m3/min)
1 m3/min (10000 to 99999 m3/min)
Automatic shutdown After 20 minutes of inactivity
Sized LCD 32.5 x 54 mm (H x W)
Power supply 4 x 1.5 V AAA batteries
Operating conditions 0 to +50 °C
<80% RH
Storage conditions -10 to +50 °C
<90% RH
Dimensions 269 x 106 x 51 mm
Weight approx. 200 g

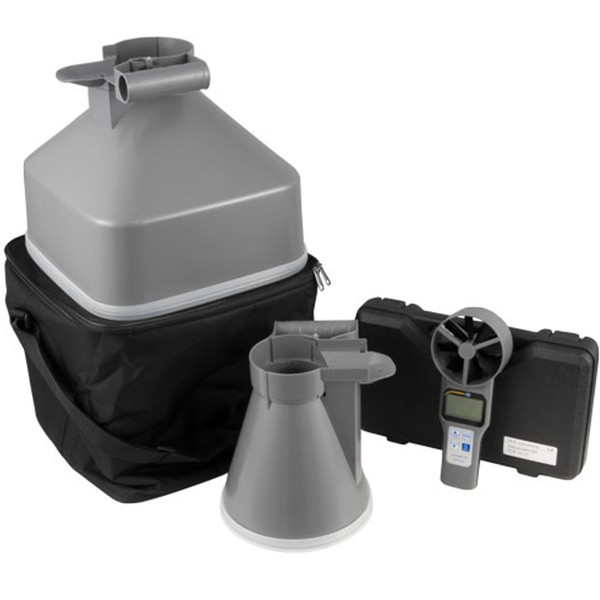

Scope of delivery:
  • 1 x Anemometer PCE-VA 20
  • 1 x volume flow hood round diameter 210 mm
  • 1 x volumetric flow hood square 346 x 346 mm
  • 4 x 1.5 V AAA batteries
  • 1 x carrying case
  • 1 x instruction manual
