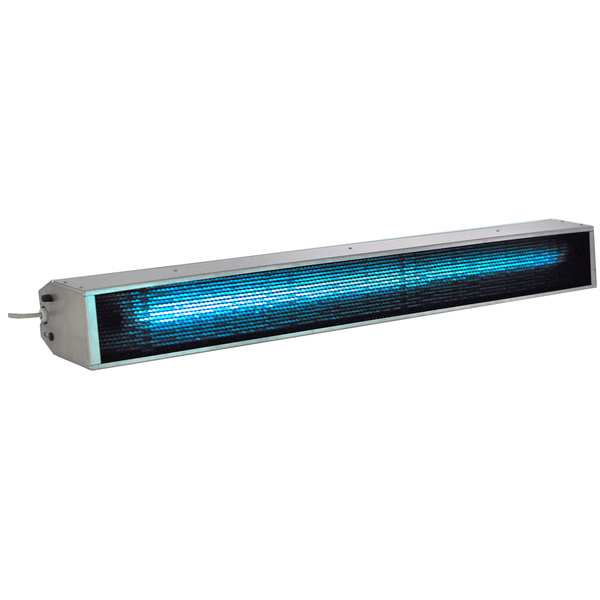

uv-technik meyer air purifier UV-FLOW

Item number: MEYER_26004

EAN: 4064343387903

Category: uv-technik meyer

Manufacturer: uv-technik meyer

Price on application
Model

There are variations of this item. Please select the variation you wish.


uv-technik meyer air purifier UV-FLOW
Air disinfection in storage rooms / hygienic sluices Sustainably reduces
the risk of germs being carried over in areas without ventilation.
  • The germ load in the room air is reduced by up to 99.9%.
  • stored goods are protected from contamination
  • A carry-over of germs is drastically reduced
  • Reliably prevents germination
Properties:
  • 2 selectable sizes
  • Cascadable according to room size
  • Deflection grille (radiation guidance)
  • Electronic ballast
  • Stainless steel housing
  • All components UV-C stable
  • Low installation effort
  • vCE sign (LVD, EMC, MD, RoHS)
  • HACCP compliant available
Advantageous fields of application
:
The UV-FLOW is used in storage rooms, airlocks, offices, and recreation rooms, where there is a constant risk of strong germ emissions from personnel or goods movements. It is installed in interiors above 2.2 m to reduce the total germ content of bacteria, spores and viruses to very low levels and to secure them permanently in the presence of people.

Due to the clever radiation guidance upwards (radiation zone), a health hazard in the presence of persons is excluded. The natural convection of the air ensures that the polluted room air continuously enters the radiation zone of the lamp, which means that the air is constantly disinfected.


Please select a model.

Width: up to 600 mm901 mm - 1000 mm
Disinfection: Air
Device type: UV Sanitizerair purifier
Height: up to 500 mm
Depth: up to 500 mm
uv-technik meyer UV-FLOW E/40H-C-NX E/75H-C-NX
Power consumption (W) 40 W 75 W
Mains voltage (V/Hz) 230/ 50 230/ 50
Protection class IP55 IP55
Length of connection cable (m) 2.5 2.5
Dimensions (mm) 530 x 109 x 151 986 x 109 x 151
Recommended room volume (m3) 20 to 25 35 to 50
Recommended floor area (m2) 6 to 8 12 to 15
Recommended lamp replacement (h) 9000 9000
Replacement lamp/ part no. A003389 A003926
